Field Change Notice FCN2-003

August 12, 1982

Effectivity: Chroma, Model 2103, Serial Numbers 0011 through 0060.

Reason for Change: To adjust balance in +5V digital current limit circuit, preventing power supply from blowing fuse.

Material Required: (1) 10K Ohm, 1/4W, 5% resistor.

Parts Kit: Order KFC2-003.

Procedure

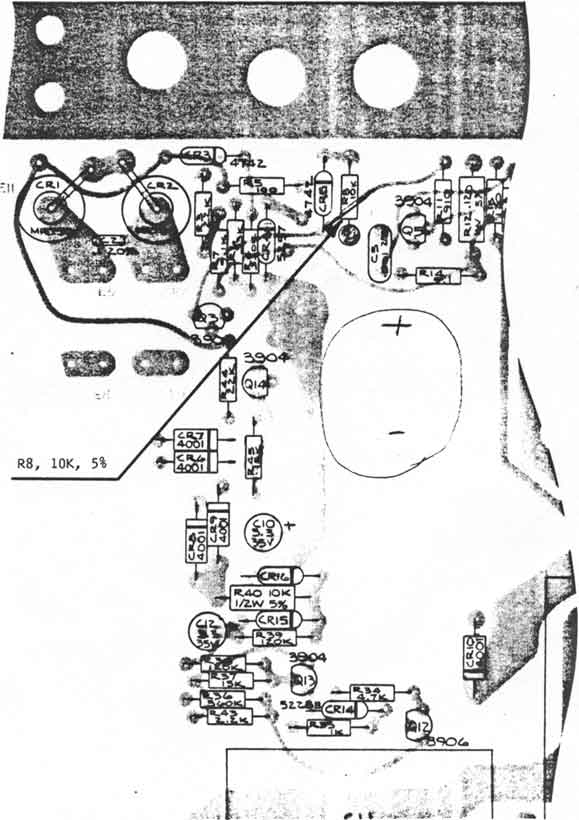

Remove R8, 1K Ohm, 1W resistor from the Power Supply Board and replace it with R8, 10K, 1/4W, 5% resisitor.

Bill Thomas
Rhodes Chroma National Service Manager
